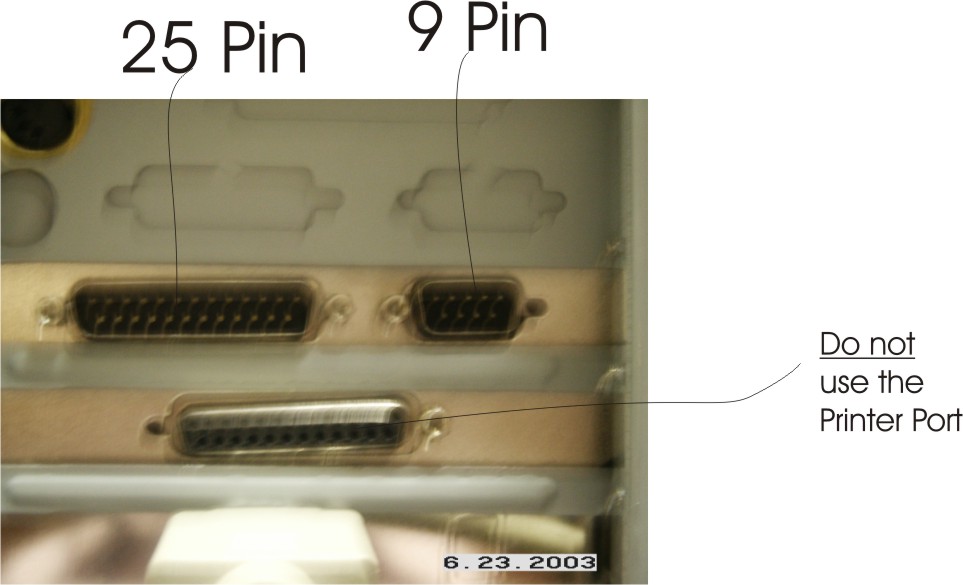

1. Q: Where
do I connect the Rav en Vinyl Cutter's data cable to my
computer? A: The Rav en Vinyl
Cutter connects to
the Com1 or Com2 serial port on your computer. This is
either a 9- or 25-pin male port. To install the software
you will have to determine whether you have chosen Com1
or Com2. If your computer does not have a serial port
you must purchase a USB to serial port adaptor.

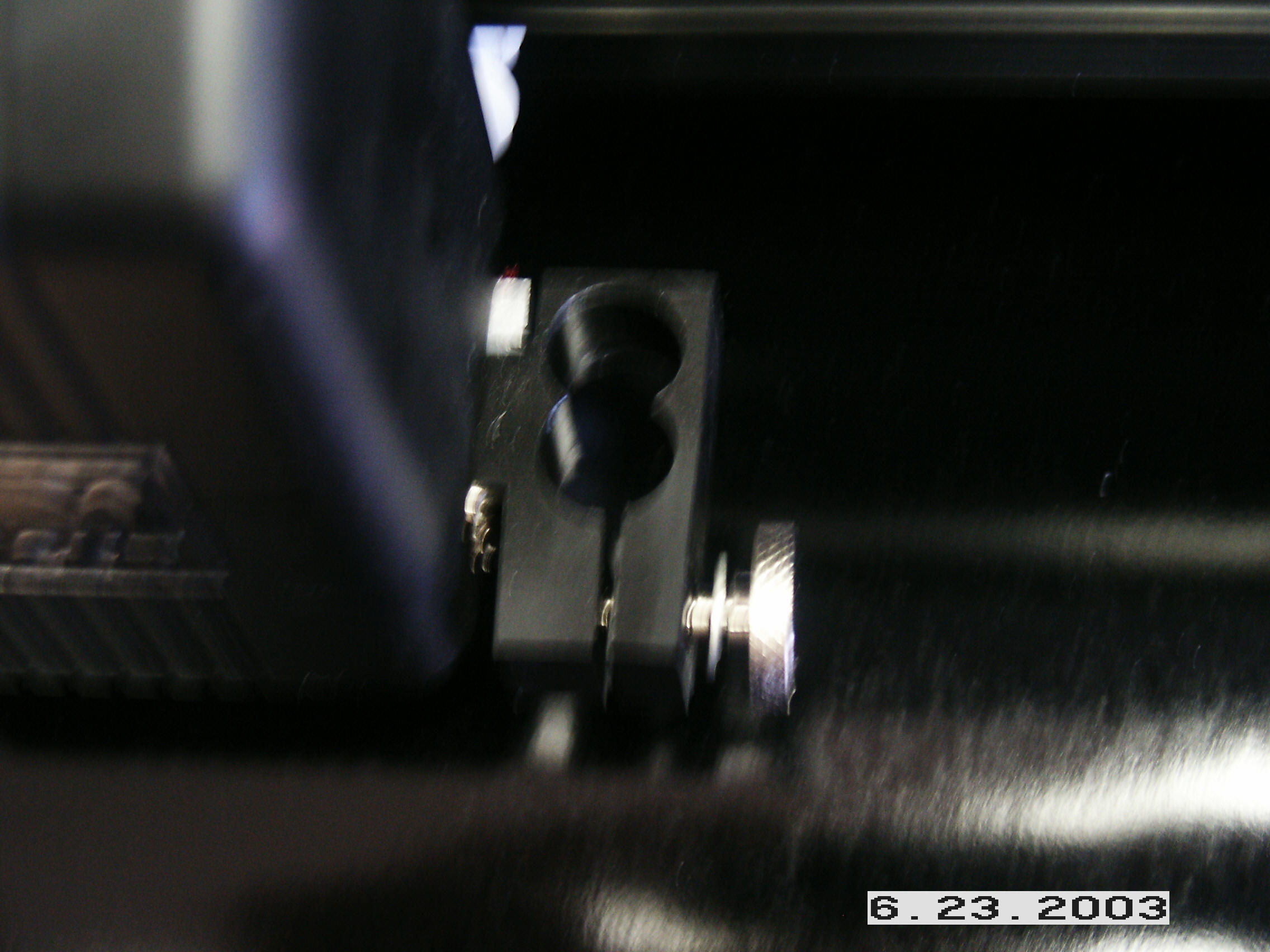

2. Q: There appear
to be two holes for the blade holder. Where does
the blade holder go? A: The blade holder
goes in the hole towards the back of the vinyl cutter.

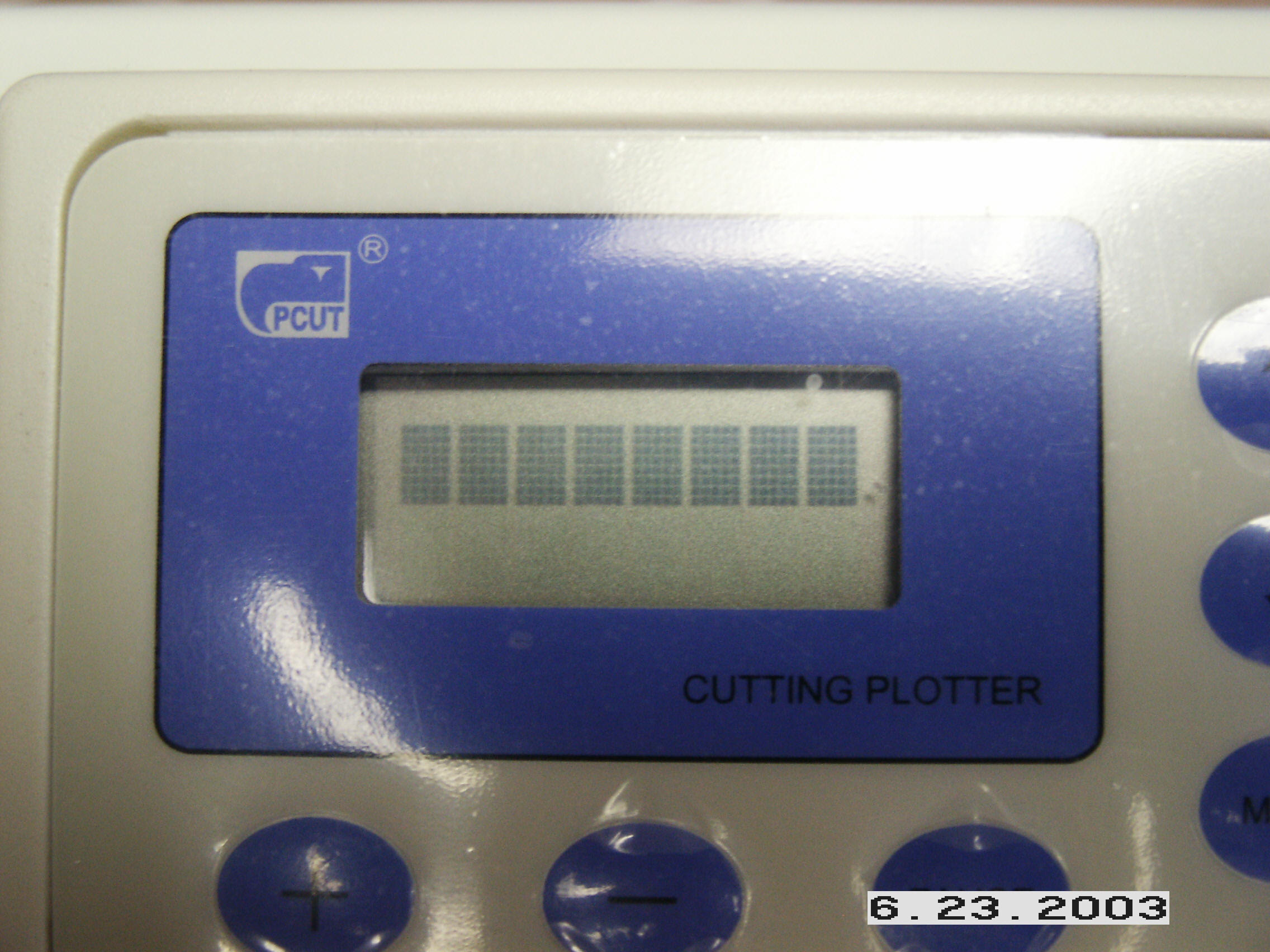

3. Q: When I switch
the vinyl cutter power on, the LED display shows a row

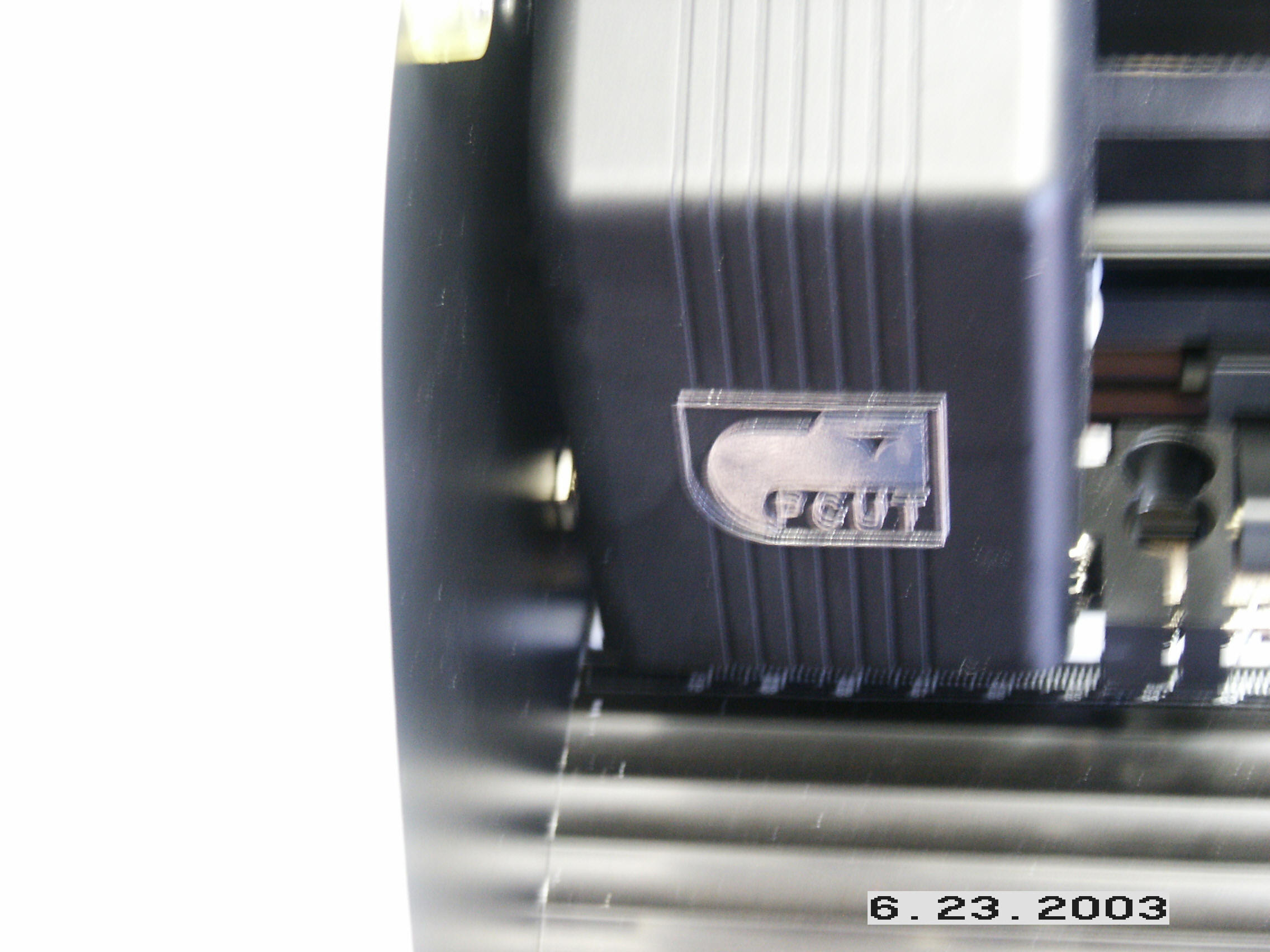

of black squares. What does this mean? A: You will notice
the cutting head is against the right or left side of
the cutter. Simply switch the power off, and manually
move the cutting head toward the center of the machine.
Now, switch the power on again. Normal operation should
be resumed.

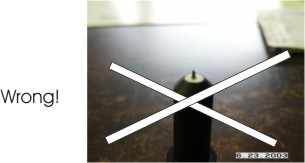

4. Q:
The vinyl cutter is cutting correctly on one side, but
too deep on the other. What is the problem? A: The blade is
protruding too far out of the holder. It should stick
out only the thickness of the vinyl. Adjust this
distance manually.
5. Q:
Which driver do I select in the software? A: The correct
driver to select in WinPC software is:
- Rav en - Use Rav en
- Rav en 2 - to Rav en 5 use Rav en 2 driver
- Rav en 5 - Use Rav en 5 driver
- Rav en 6 to 8 - Use Raven 5 or Rav en 8 driver
*** Rav en to Rav en 5 use the correct com port and baud rate 9600
**** Rav en 6 to Rav en 8 use the correct com port and baud rate 38,400
If you have any other questions regarding
set-up or use of your Rav en Vinyl Cutter, please do not
hesitate to contact us.
