Kingcut Router Tables
Are you ready to invest in a lucrative, new
opportunity? The 3D sign market offers profitable
possibilities, and the Kingcut line of high
quality, low priced CNC router tables makes it easy for you to
get started. Compact size and low price make it possible for
you, even in a smaller shop. Don't let the size or price fool
you. These tables are rugged, with the functions to
produce quality results. Now that you're ready to get
started, contact SignEquip by Corbins to order your Kingcut Router Table.
Our qualified technicians will help you get up and
running.
|
Features:
-
Compact 31-3/4" x 50" table size
-
Heavy-duty steel base
-
DSP multi-axis controller with USB
-
32
MB flash memory
-
Accepts standard HPGL and G-code commands
-
3D
software compatible
-
Automatic Z axis sensor
-
Maximum speed 360"/min
-
Smooth, quiet operation
-
Minimal vibration
|

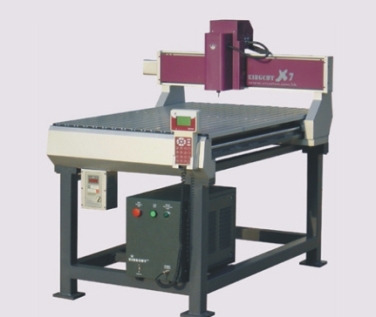

Kingcut X7 |
|
Your Price: $14,997 CAD $13,797 USD
contact
us...
Specifications Kingcut X7 Router Table |
|
Item\Model
|
X7 |
|
X.Y axis motion |
800mm, 900mm (31.75",
35.75") |
|
Z axis motion |
80mm ( 3") |
|
Table size(X/Y) |
800/1270mm (
31.75/50.4") |
|
Max.speed |
9m/min (360") |
|
Max.working speed |
6.0m/min (240") |
|
Resolution |
0.005mm |
|
Repeat resolution |
0.05mm |
|
Max.feeding height |
90mm (3.5" ) |
|
Processor |
DSP/frequency 100MHZ |
|
Interface |
USB1.1 |
|
Flash memory |
32MB |
|
Instruction |
HP-GL / G-Code |
|
Designed for |
Windows98/2000/XP |
|
Power supply |
AC220V(AC110V ) |
|
Power consumption(exclude spindle) |
500W |
|
Spindle |
1200w |
|
Spindle rotary speed |
0~24000 rpm |
|
Weight |
350 kg (771 lbs) |
|
Operating environment |
Temperature:+5 ~+35C,Humidity:30%~75%
|
|
Also available Kingcut Model X6 (approx.
table size 23.5" x 27.5") and Model X12 (approx. table
size 46.5" x 46.5" - Estimated price
$19,997 CAD, $18,397 USD).
Contact us for more info and current price.
