Graphtec
FC7000MK2 Vinyl Cutter
Are you looking for high quality
results? Do you need a high production cutter? The
Graphtec FC7000 Vinyl Cutter may be the cutter for you.
SignEquip is pleased to announce the
distribution and service of Graphtec Vinyl Cutters. Graphtec’s
reputation as the #1 selling vinyl cutter in North America,
and a leader in the world market, is your assurance of cost
effectiveness. You get good quality at a very decent
price.
The new FC7000MK2 high performance model has been upgraded significantly
from its popular predecessors.
Newer drive
technologies provide enhanced tracking capability
for up to 50 feet, as well as the highest cutting
pressure in its class, and the fastest cutting speed
in its class. The advanced
features on this model include Advanced Registration Mark
System with 3 or 4 point marks, Area Segmentation, Multiple
Marks, Tangential Emulation, and more.

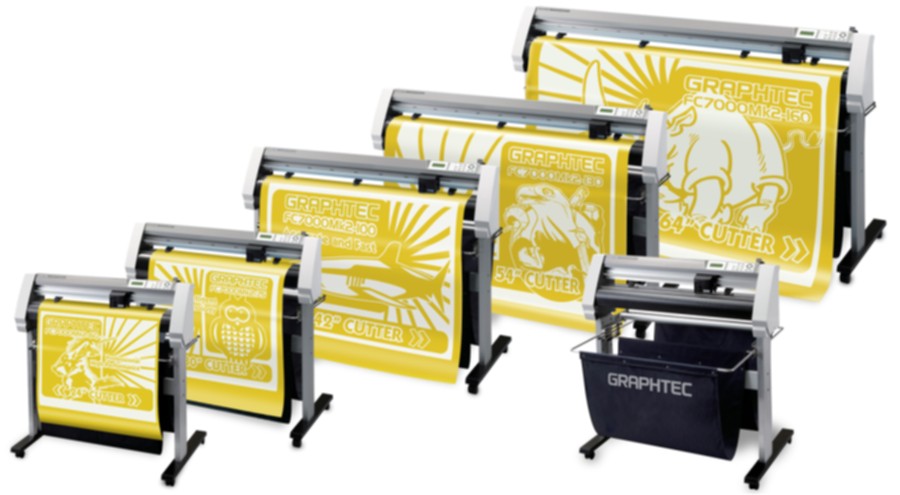

Plus it's available in five convenient sizes:
24", 30",
42", 54", & 64", to suit your individual needs.
All units come with
standard floor stands and dual media catch
baskets for dust-free, continuous long length and/or repetitive
job operations.
(Optional features available for this model are a multi-media stocker, pouncing tool, and registration/axis
alignment loupe.)
Are you looking for high
quality cutter to die cut or contour cut printed images?
The above-mentioned features ensure that the FC7000MK2 is an
excellent partner for your large format digital printer.
Order your Graphtec FC7000MK2
cutter from SignEquip now.
contact
us...
|
NEW FEATURES
|
|
New drive technologies for up to 50 feet of
tracking capability.
|
|
Automatic Cross Cutter - Gives you a straight sheet
cut-off of your finished job.
|
|
Light Pointer - Allows you to manually detect
registration marks, as an alternative to using the
automatic registration mark sensor (ARMS).
|
|
Variable Push Roller Pressure - You have the option
to choose from two settings for optimum media feeding
performance.
|
|
Bi-Directional Media Loading - For your convenience
you can now load the media from the back or the front
of the cutter.
|
|
Blade Length Navigator - Provides information so you
can control the extended blade length to prevent
blade damage and facilitate an optimum cut.
|
|
Improved Media Supply Mechanism - Eliminates
frustration and increases productivity by assisting you
to load and align media accurately. Also
prevents accidental feeding out of the roll during
cutting.
|
|
Large LCD Display w/ Back Light - Allows you to
check all cutting conditions at a glance.
|
|
Cutting Plotter Controller - Allows you to
conveniently control the FC7000 directly from your
computer.
|
The FC7000MK2
Series Vinyl Cutter includes more benefits to users than
ever before. All models now include a standard floor stand,
and feature an advanced automatic registration mark sensor
system for contour cutting printed images. Cutting speeds
have been increased to help users reduce their project
turn-around time. Sign makers, auto-aftermarket professionals,
graphic artists, and other users can take on a wider range of
projects thanks to increased cutting force for processing
thicker, harder materials like sandblast or diamond grade
reflective films. Also, the new FC-series is wider,
increasing the maximum loadable material width to particularly
benefit those operating a print and cut system, where the
printer width might normally exceed the cutter width. The new
FC7000MK2 series comes in 5 model sizes of 24", 30", 42",
54", 64" and accepts material widths of up to
30.3", 36", 48", 60",
and 72" for each model, respectively. In addition, a wealth
of new features have been added for increased productivity,
versatility, and ease-of-use. The FC7000MK2 is a logical
choice for those seeking a high-performance cutting system
designed for speed, versatility, and precision.
.pdf format requires Adobe Acrobat
contact
us...
|
FC7000MK2 Series Specifications
|
|
Parameter
|
FC7000MK2-75
|
FC7000MK2-100
|
FC7000MK2-130 |
FC7000MK2-160
|
|
CPU |
32-bit |
|
Configuration |
Digital Servo Friction feed with MicroGrit rollersTM
drive |
|
Maximum
cutting area (expanded mode) |
30.0 in. x 164'
(762 mm x 50 m) |
42.0 in. x 164'
(1067 mm x 50 m)
|
54.0 in. x 164'
(1372 mm x 50 m)
|
64.0 in. x
164'
(1626 mm x 50 m) |
|
Compatible
film width |
2.9 in. to 36.2 in.
(74 mm to 920 mm)
|
2.9 in. to 48.2 in.
(74 mm to 1224 mm)
|
2.9 in. to 60.2 in.
(74 mm to 1529 mm)
|
2.9 in. to
72.2 in.
(74 mm to 1834) |
|
Maximum
auto cross cutting width |
35.0 in. |
47.0 in. |
59.0 in. |
69.0 in. |
|
Maximum
media thickness |
59.1 mil |
|
Maximum
cutting speed |
58.5 in./s
(1485 mm/s)
|
|
Programmable
axial cutting speeds |
0.4 to 41.3
in./s in 105 steps
(10 to 1050 mm/s) |
|
Maximum
tracking |
50 feet |
|
Maximum
axial acceleration |
4.0 G |
|
Programmable
cutting
force |
20 to 600g in 40 steps (0.196N to 5.88N) |
|
Minimum
character matrix |
Approximately 0.125 in. high
Alpha-numeric characters, varies with type of film and
font
(3 mm.) |
|
Mechanical
resolution |
0.0002 in.
(0.005 mm.) |
|
Programmable step size |
GP-GLTM: 0.0004 in.; HP-GL®
emulation: 0.001 in.
(GP-GLTM: 0.01 mm; HP-GL®
emulation: 0.025 mm) |
|
Repeatability*1 |
0.0039 in. over 80 in. travel or better
(0.1 mm. over 2 m.) |
|
Number of tool holders |
1 (accepts cutting blade, plotting pen, and pouncing
tool) |
|
Blade
types |
Supersteel, ceramic, sapphire,
(0.9 mm. or 1.5 mm.) |
|
Pen types |
Water-based fibertip, roller ball, and ceramic tip |
|
Film types |
Self-adhesive vinyl film, fluorescent film, diamond
grade, hi-intensity reflective
film, automotive window and paint protection films, AmberlithTM, RubylithTM,
sandblast resist rubber, etc. |
|
Pouncing function
|
Standard with multi-functional plotting surface for
cutting, plotting, and pouncing (requires optional
pouncing tool)
|
|
Interfaces
|
RS-232C Serial and USB (Auto Switching) |
|
Data buffer |
2 Mbytes |
|
Command
set |
GP-GLTM/HP-GL® (control panel
selectable) |
|
Control
menu & status display |
20 digits by 4 lines LCD with comprehensive icon
corresponding soft keys |
|
Axis
alignment
|
Standard precision registration mark sensor for
registration of pre-printed digital image
|
|
Media
supply mechanism
|
Integrated Accuload™ media supply system
Optional media rack for simultaneously holding up to
3 rolls of media
|
|
Media pre-feed
|
Standard (built-in
SmartFeed™ function automatically unwinds and
pre-feeds media for an operator specified distance
upon self-recognition of plot file length)
|
|
Floor
stand
|
Standard
|
Standard
|
Standard |
Standard
|
|
Dual media catch basket |
Standard |
Standard |
Standard |
Standard |
|
Power
requirement |
100-240 VAC, 48-62 Hz; auto switching, 120 VA max. |
|
Operating
environment |
50° to 95°F (10° to 35°C), 35% to 75% RH
(non-condensing) |
|
Guaranteed
accuracy environment |
50° to 90°F (16° to 32°C), 35% to 70% RH
(non-condensing) |
|
Standard software |
Cutting MasterTM plug-in software, QuickCutTM
plug-in software, Cutting Plotter Controller software
(Windows®/Mac® compatible) |
|
Options |
Additional Media Rack, Pouncing Tool, Media Catch
Basket, Registration/Axis Alignment Loupe |
|
Factory installed options |
Second penholder |
|
Footnotes |
|
*1 |
When operated with Graphtec-specified media and
conditions |
