Graphtec
CE5000 Series Vinyl Cutter
Why would you want a
Graphtec Cutter? It’s an excellent investment in the future
of your business. Let’s start with: Affordable, Dependable,
Solid and Durable, User-friendly, Long-tracking, and Advanced
Registration Mark Sensor - the same as in the high production
models - for die/contour cutting. Is
that a good start for you? In other words, with the CE5000
you get maximum return for a minimum investment. “It’s an
unbeatable combination of Price, Performance, and Reliability to
give you that competitive edge.”
SignEquip is pleased to announce the
distribution and service of Graphtec Vinyl Cutters.
Graphtec’s
reputation as the #1 selling vinyl cutter in North America, and
a leader in the world market, is your assurance of quality and
reliability. Our qualified
technicians are pleased with the price-quality ratio of Graphtec's
popular cutters.
Check out the brand new CE5000 Series; the bar
has been raised on entry-level vinyl cutting! Graphtec has long been
known for quality high production cutters, and now they’ve put
all that experience and technology into a value-packed model
even the smallest shop can afford! It's got most of the
features of more expensive cutters, so you can compete with the
best. For example, do you need an economical solution to
easily and accurately contour cut your digital prints?
The CE5000 is a suitable partner for your inkjet
printer.
It's so easy. Order from
SignEquip now.
You will be contacted to confirm shipping time.
contact
us...
|
COMPETITIVE FEATURES
 |
Advanced
Registration Mark Sensor
detects registration
marks along the sides of digitally produced images -
not only compensating for material expansion or
contraction in both the X and Y axis, but also
compensating for any skewing occurring in the center
section during the printing process.
|
|
|
Cutting
Master™ 2 Plug-in Software
interfaces with CorelDraw® and Adobe® Illustrator®
|
|
|
Robo Master Pro™,
a simplified design software, is now added as a
standard accessory.
|
|
|
Sophisticated Controller software
|
|
|
USB is 2.0
(Full Speed)
|
|
|
SmartFeed™
Media Management for long-length
or unattended repeat jobs
|
|
|
Unmatched
Value gives
you precision engineering for a high class cutting
solution that’s affordable for everyone.
|
Click here for specifications
|
CE5000 - 60 (24")
New Low Price:
$2197 CAD
Your Price: $2197 USD
|
|
CE5000-120 (48")
Your Price:
$4297 CAD
Your Price: $4297 USD
|
contact
us...

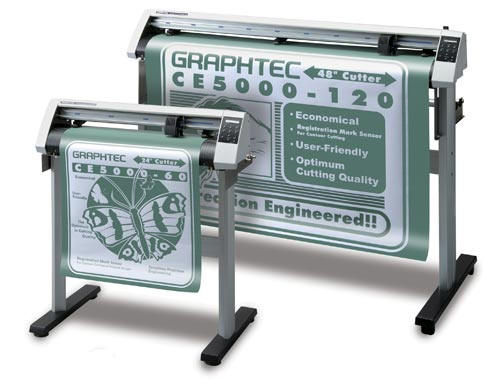

CE5000 Series
Vinyl Cutters come in two sizes to fit
your sign making needs.
CE5000 Series
- Engineering Class
(Specifications subject to change without notice)
Specifications •
|
Parameter |
CE5000-60 |
CE5000-120 |
| CPU |
32-bit CPU |
| Configuration |
Microgrit Rollers, moving
media |
| Drive system
|
Digital Servo Motor |
| Maximum cutting area |
23.7 in x 164 ft (603 mm x 50 m) |
47.8 in x 164 ft (1213 mm x 50 m) |
| Assured Accuracy *1 |
23.0 in x 16.4 ft (584 mm x 5 m) |
47.0 in x 16.4 ft (1194 mm x 5 m) |
| Compatible Media
widths |
Min: 2 in (50 mm) Max: 28.0 in (712
mm) |
Min: 3.3 in (85 mm) Max: 53 in (1346
mm) |
| Maximum Media
thickness |
10 mils (0.25 mm) |
| Maximum Cutting speed |
24 in/s (60 cm/s) in all directions |
40 in/s (100 cm/s) @ 45˚ angles |
| Cutting Speeds |
1-10, 15, 20, 25, 30, 35, 40, 45, 50,
55, 60 cm/s |
1-10, 15, 20, 25, 30, 35, 40, 45, 50,
55, 60 cm/s |
| Cutting Force |
0.2-2.9N (20 gf to 300 gf) (31
levels) |
0.2-4.4N (20 gf to 450 gf) (38
levels) |
| Minimum character
size |
Approx. 20 point, 0.196
inches (5 mm) for alphanumeric characters (depends on
the medium, font, etc.) |
| Mechanical resolution |
0.0002 in (0.005 mm) |
| Programmable
resolution |
GP-GL: 0.01, 0.025, 0.05,
0.1 mm HP-GL: 0.025 mm |
| Repeatable Precision |
0.1 mm or less per 2 m
(*1 Using Graphtec recommended media and appropriate
cutting conditions.) |
| No. of Tools
mountable |
1 - blade or pen |
| Compatible Cutter
type |
Graphtec SuperSteel
blades, 0.9mm and 1.5mm diameter. |
| Compatible Pen type |
Graphtec Water-based
fiber-tip pens |
| Compatible Media |
Vinyl film, fluorescent,
decal, light reflective (except high-luminosity), paint
masking, banner, thermal transfer vinyl, flex, flock,
image transfer media, vinyl print media, etc. |
| Interface |
Serial RS-232C / USB 2.0
High Speed |
| Data Buffer |
2 MB |
| Command modes |
GP-GL, HP-GL� (selectable
in Command menu) |
| Display panel
|
Liquid Crystal Display
(16 characters x 1 row) |
| Power Supply Input |
100 to 240 VAC, 50/60 Hz
1.2A |
| Power Consumption |
100 VA |
| Operating Environment
|
50 ~ 95˚F (10 ~ 35˚C) 35
~ 75% RH (non-condensing) |
| Recommended
Environment |
61 ~ 80˚F (16 ~ 32˚C) 35
~ 70% RH (non-condensing) |
| Dimensions w/ stand
(w x d x h) |
33.5 x 23.0 x 39.5 in. (851 x 585 x
1004 mm) |
58.5 x 29.3 x 47.0 in. (1487 x 744 x
1194 mm) |
| Equipment Weight w/
stand |
55 lbs (25 kg) |
88 lbs (40 kg) |
| Shipping Weight
(approx) |
67 lbs (30.5 kg) |
100 lbs (45.5 kg) |
| Warranty |
Two Years Parts and Labor
at depot. |
|
Footnotes |
|
*1 |
When using
Graphtec-specified media and cutting conditions |
|
ABOUT GRAPHTEC: Graphtec Corporation was established
(as Watanabe Instruments) in Tokyo in 1949.
Graphtec rapidly became an industry leader, both in
Japan and around the world.
The
company introduced its first plotter in 1961. With the
growth of computing in the 1960's, Graphtec branched out
into computer aided design (CAD), and today offers a
wide range of computer input devices, such as cutting
plotters for the sign and apparel industries, thermal
printers, thermal-transfer printers, and inkjet
printers. |
Graphtec has worked hard to bring you a price to quality ratio
you won't find anywhere else. If your budget is limited,
and you want to raise the production bar in your vinyl
cutting business, Graphtec CE5000 Series cutters
make so much sense.
Need more info? SignEquip is as close as your email, fax,
or telephone. We're happy to help you. For one-step service we'll
answer your questions, and you can place your order over
the phone.
