Allen Datagraph 536 Series
Vinyl Cutter
The cutter best suited for cutting sandblast mask for cedar sandblasted signs.
The

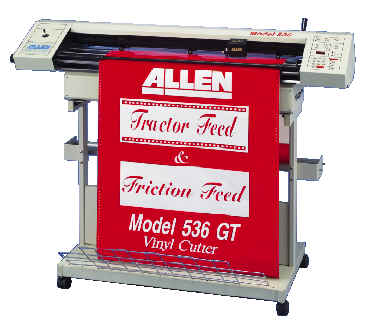

Allen Model 536 Sprocket/friction feed
cutter
combines all the features of Allen’s
field
proven 800 Series cutters into a vinyl cutter that can do
both sprocket and friction feed. You
not
only get superb sprocket capability that
instantly
adjusts from 15 inches up to 36 inches,
but
you also have the versatility of friction feeding
material
from 5 inches up to 36 inches wide.
The
536 comes equipped with Allen’s exclusive
Gold
Touch II cutting head, which has an
unbelievable
100 steps of digitally-controlled
force.
With force selections ranging from 5 grams
up
to 550 grams, Gold Touch II is the most
versatile
head in the industry!! There’s no
compromise
with the 536’s full function control
panel,
either. All cutting parameters are easily
set
up using a simple 2 to 3 key sequence.
The
industry’s best pouncing is also standard
on
the 536, with 100 selections for both hole
size
and spacing.
The
new Model 536 is ideal for automotive
striping,
large step and repeat jobs, and
sandblast
masking of all types. Unique
"tangential
emulation" allows the 536 to cut
perfectly
square corners in heavy material.
Contact SignEquip for more info about the Model 536
vinyl cutter today!
contact
us...
|
|
|
Cutting |
Pouncing |
Sandblast Mask |
Model Summary
|
Media width |
5 to 36 inches (18 to 155 cm) |
|
Maximum frame size |
36 inches x 250 feet (152 cm x 63.5 m) |
|
Media handling |
Adjustable sprocket feed/microgrit friction feed |
|
Media type |
vinyls,
Rubylith®,
Tyvek®,
paper, sand blast mask |
|
Resolution, addressable (HPGL) |
0.000984 inch (0.025 mm) |
|
Resolution, mechanical |
0.000120 inch (0.003 mm) |
|
Endpoint accuracy |
0.009843 inch (0.25 mm) or 0.1% of total |
|
Repeatability |
0.004 inch (0.10 mm) |
|
Speed |
24 in/s (40 cm/s) |
|
Acceleration, selectable |
balanced, 0.25 to 4 G’s |
|
Force, selectable |
10 to 550 grams |
|
Plot origin, selectable |
long X, long Y, center or center rotated 180° |
|
Command language |
HPGL |
|
Interfaces (3) |
RS-232-C(2), parallel |
|
Buffer |
2 MB; all expandable to 8 MB |
|
Emulation |
HP 7585/86 |
|
Microprocessor |
Intel RISC 80960i |
|
Knife blade |
pivoting carbide tip, 45° and 60° |
|
Knife offset, selectable |
0 to 0.1 inch
(2.5 mm) |
|
Pounce tip
|
tool steel |
|
Pounce pitch, selectable |
0.01 to 1.0 inch (0.25 to 2.5 mm) |
|
Pens, number |
1 (multipen simulation is selectable) |
|
Pen types |
felt, roller ball, or drafting (HP style) |
|
Wide markers (optional)* |
0.2, 0.1 inch (5 mm, 2.5 mm) |
|
Hot tip (optional)** |
0.003 inch (0.075 mm) |
|
Operating temperature |
32 to 117° F (0 to 40°C) |
|
Operating humidity |
relative, 5% to
95%
|
|
Physical size and weight |
55 x 17 x 13
inches (201 x 43 x 33 cm); 76 lbs (35 kg)
|
|
Cart size, assembled |
37.5 x 21 x 33 inches (168 x 54 x 84 cm); 64 lbs
(29 kg) |
|
* Wide Marker Adaptor sold separately |
** Hot Tip Option must be
factory installed |
|
Sprocket or Friction
Feed |
|
Gold Touch Cutting
Head |
|
Contour Cutting |
contact us...
If you need a sprocket feed vinyl cutter that will cut sandblast
mask for granite or wood, the Allen Datagraph 536 is just what you're looking
for. To top it off you get the best of both worlds - the dependability of
sprockets with the versatility of friction all in one cutter! Combine that with
Corbins' amazing, legendary service and it's a no-brainer. Do yourself a favour.
Make all your cutting a pleasure. Order your Allen 536 Model from SignEquip now.
For one-step shopping we'll answer your questions, and you can place your order over
the phone.
